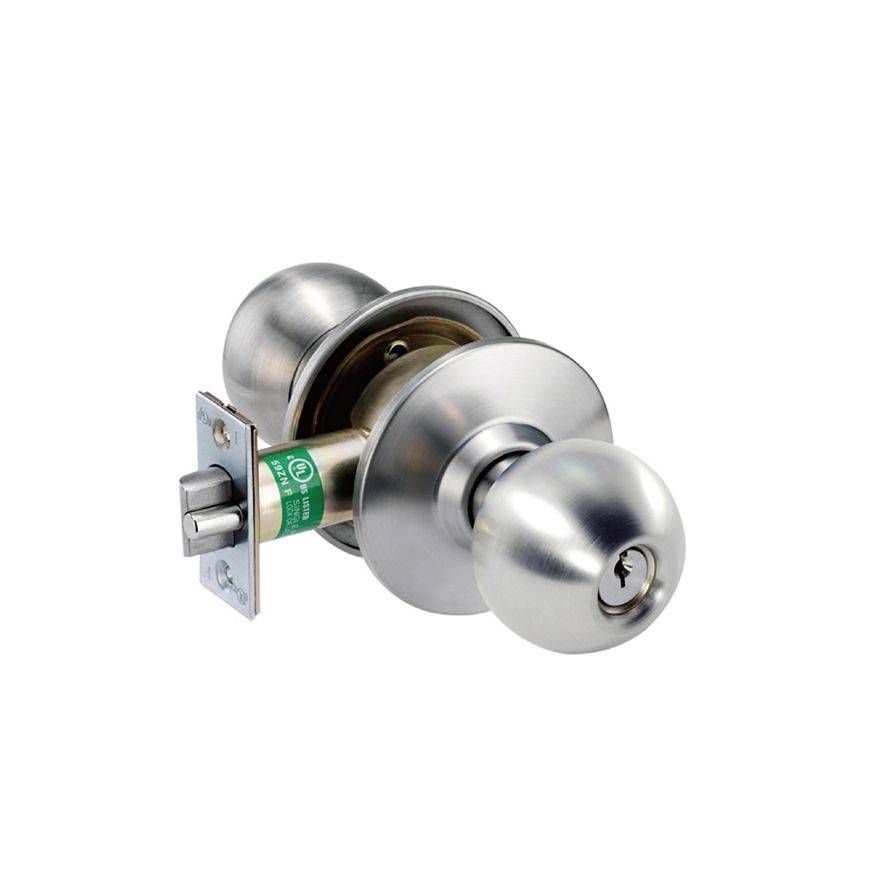

AGK-7000

Commercial knob lock AGK series
Heavy-duty type

ㆍ AGK-7000-ENT-IC

FINISH

ㆍSS    ㆍPB    ㆍ10BE

Features

ㆍ It maintains durability of more than 500,000 Cycle tests with ANSIA 156.2 Grade 1 certification and BHMA Listed products
ㆍ After passing the UL10C 3 Hours Fire Rated-R20508 in the United States (UL10C 3 Hours Fire Rated-R20508), it can be operated for more than 3 hours in case of fire
ㆍ It has excellent security with 6 Pin Solid Brass Cylinders and special Keyway
ㆍ It is installed in public buildings such as government offices, commercial buildings, hospitals, and hotels where access is frequent

Specification

ㆍ Backse : 2-3/4"(70mm) Standard, 2-3/8"(60mm)
ㆍ Door Thickness : 1-3/4" (45mm) Standard, 1-3/8"(35mm)~1-3/4"(45mm)
ㆍ Fron t: 57*28.4MM
ㆍ Strike : T STRIKE / ASA STRIKE
ㆍ ROSE: ∮85(For Lever), ∮80 (For Knob)
ㆍ LATCHBOLT : GRADE 2- 12.7MM STAINLESS STEEL THROW
ㆍ CYLINDER : SOLID BRASS, 6PINS CYLINDER W/SCHLAGE ,"C" KEYWAY
ㆍ KEY SYSTEM : KA, KD, MK, GMK
