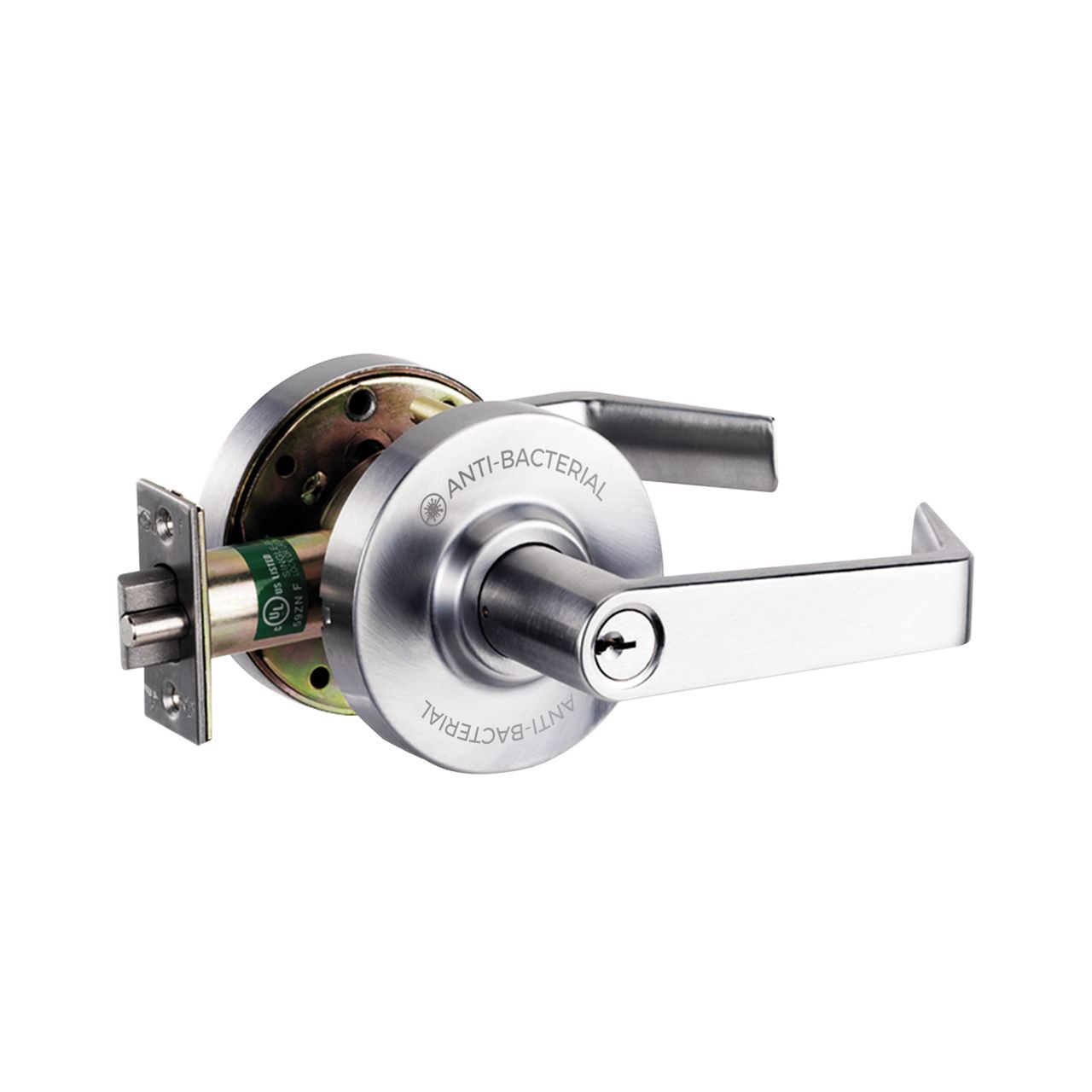

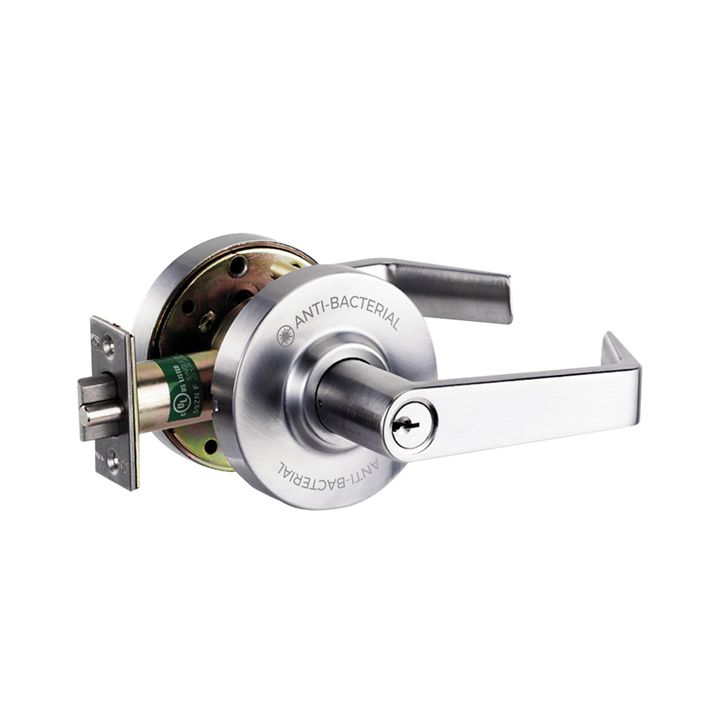

AGL-8000E4-ENT

Commercial Lever lock AGL-8000 series.Extra Heavy-duty type

Design

ㆍ 'L' Lever (IC) & Flat Rose    ㆍ'R' Lever & Round Rose    ㆍ'I' Lever & Flat Rose

Finish

ㆍSC    ㆍPB    ㆍ10BE

Features

ㆍ It maintains durability of more than 1,000,000 Cycle tests with ANSIA 156.2 Grade 1 certification and BHMA Listed products.
ㆍ After passing the UL10C 3 Hours Fire Rated-R20508 in the United States (UL10C 3 Hours Fire Rated-R20508), it can be operated for more than 3 hours in case of fire
ㆍ Korea's 1 hour fire proof
ㆍ Even if the door is locked from the outside, there is an anti-Panic function that allows the door to be opened only by lever operation from the inside
ㆍIt has excellent security with 6 Pin Solid Brass Cylinders and special Keyway
ㆍIt is installed in public buildings such as government offices, commercial buildings, hospitals, and hotels where access is frequent.

Specification

ㆍ Backset: 2-3/4"(70mm) Standard, 2-3/8"(60mm)
ㆍ Door Thickness: 1-3/4" (45mm) Standard, 1-3/8"(35mm)~1-3/4"(45mm)
ㆍ Front: 57*28.4MM
ㆍ Strike: T STRIKE / ASA STRIKE
ㆍ ROSE: ∮73
ㆍ LATCHBOLT: GRADE 1- 13.4MM STAINLESS STEEL THROW
ㆍ CYLINDER : SOLID BRASS, 6PINS CYLINDER W/SCHLAGE ,"C" KEYWAY
ㆍ KEY SYSTEM: KA, KD, MK, GMK
