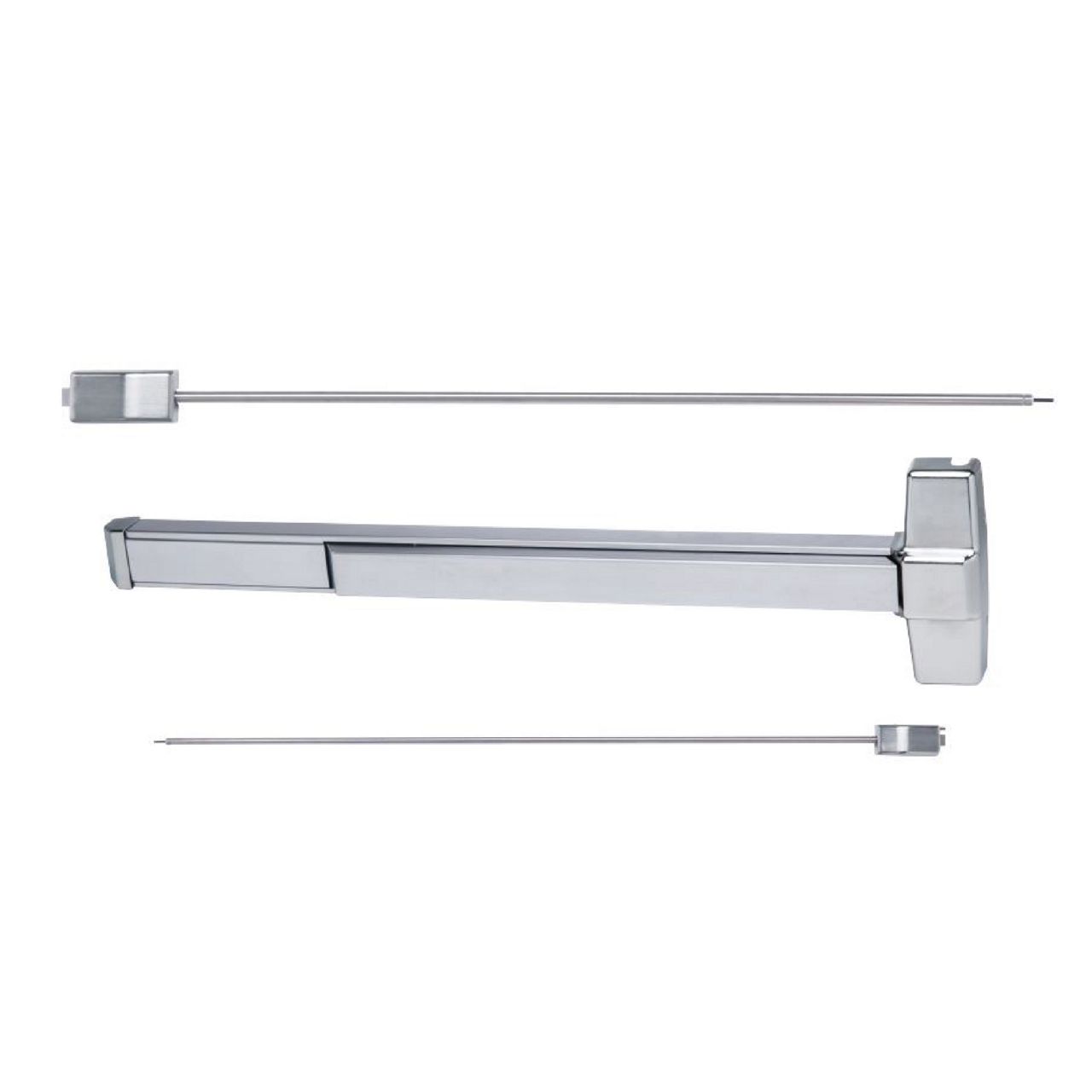

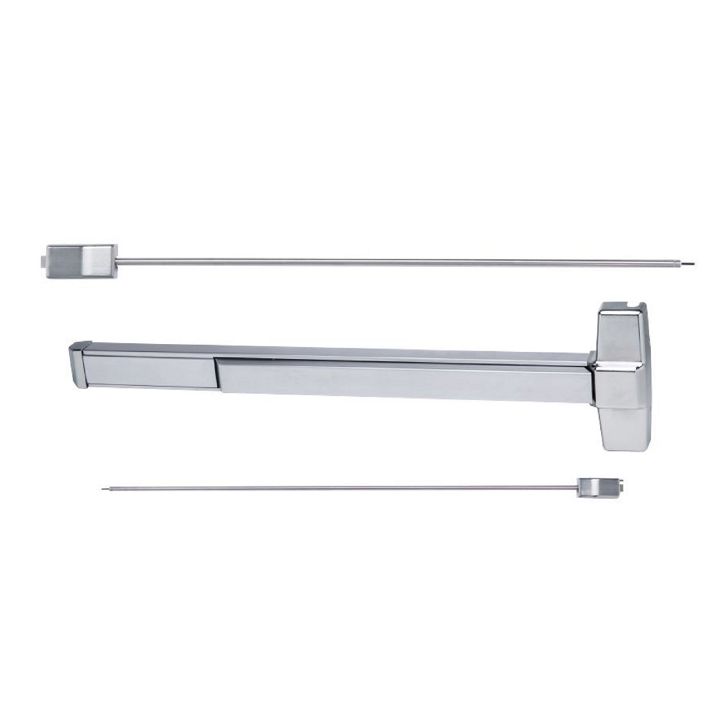

AED-4000 SS
Exit Device series
Vertical Rod Type
Features
ㆍ It maintains durability over 500,000 times with ANSIA A156.3 Grade1 certified and BHMA Listed products
ㆍ You have been certified as UL305 Panic Safety Hardware
ㆍ Korea's one-hour fire proof
ㆍ In the event of an emergency escape such as a fire, push the push bar to open the door, making it easy to escape
ㆍ It is applied mainly to fire doors and emergency entrances used in commercial and public buildings
ㆍ Door Width: 760~910mm Standard door, 910~1220mm Wide door
ㆍ Door Thickness : 38~45mm Standard door
ㆍ Minimum door stile width : 35mm
ㆍ Push bar projection : 60mm active, 45mm depressed
ㆍ Latchbolt : Protrude length 19mm
ㆍ Dogging feature : Hex key dogging standard
